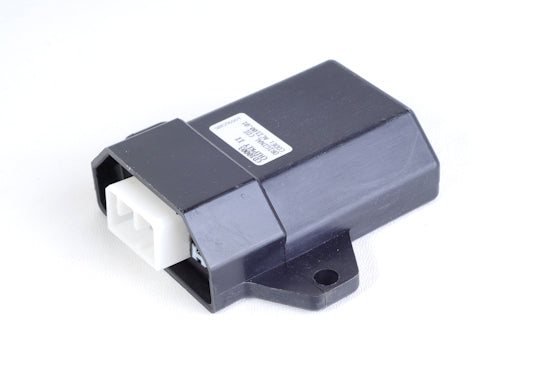

Immobiliser Bypass CDI for Peugeot Vivacity / Elyseo 50cc / 100cc ACI100

Immobiliser Bypass CDI for Peugeot Vivacity / Elyseo 50cc / 100cc ACI100

Regular price £43.00 GBP
Regular price Sale price £43.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Peugeot Elyseo and Vivacity Immobilizer Bypass CDI. 2000 – 2006.

Removes the Factory Fitted Immobilizer System on the 50cc / 100cc 2 Stroke scooters fitted with the ACI100 immobilizer system

Once installed, any key that fits the lock can start the scooter engine

UK Stock, Fast shipping with all UK orders.

This Immobilizer Bypass CDI will fit the Peugeot Elyseo and Vivacity 2 Stroke Scooters.

Approx. Model Years 2000 to 2006. - 50cc and 100cc.

Replaces OEM part number ACI100.01, ACI100.02, 740465 (for reference only)

Removes immobilizer!

Fits the following Peugeot Scooter Models:

  • Elyseo 50cc / 100cc (2000 – 2006)
  • Vivacity 50cc / 100cc (2000 – 2006)
  • Speedfight 50cc / 100cc (2000 – 2006)

No wires to cut. Simply remove the original CDI and plug this bypass CDI into the 8 pin loom connector.

NOTE: Once fitted your scooter will not have an immobilizer. Any key that fits the ignition barrel will start the scooter.

NOTE: Only for scooters fitted with a Mechanical Oil Pump.

Removes requirement for Chip Key on bikes fitted with the ACI100.01 and ACI100.02 Ignition unit

BRAND: CDI Ignition Technology
MPN: ACI100.01/02
(MPN for Reference Only)

A Capacitor Discharge Ignition, or CDI, is an electronic ignition device that stores an electrical charge in a capacitor and then discharges it through an ignition coil and spark plug, producing a spark. They are often found in scooters, motorbikes and plant equipment powered by petrol engines.

Sometimes the CDI is referred to as Electronic Points because it replaces the traditional mechanical points that performed the same task before electronic CDI units were widely available.
CDI units are usually designed to be specific to a particular application, as the spark timing can vary between different motorcycles, and some engines have two cylinders so require two spark outputs. For that reason, it is important to get the correct CDI for your application.

Many CDI units can appear the same externally, but they may be either AC fired or DC fired. Also, even though the connectors may appear the same, they often have a different pin-out configuration.
